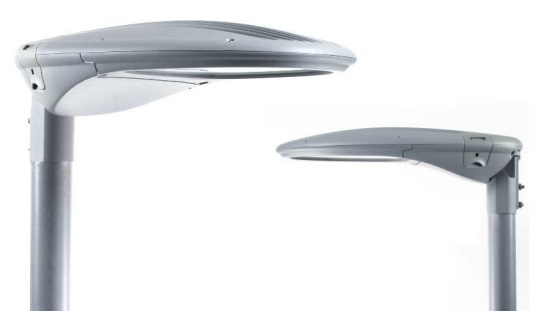

NEW-LUXIS ARMTUR
Specifikations
Lightsource LED 18-72 Rebel TX / Fastflex Gen3 LED Modules
Insulation class I/II
System Power 16 – 150W
Driver Power factor cos φ 0,90 @ full load
Light output 1800 – 15000 lumen
Color Temperature 3000 K / 4000 K
Color Rend. Index Ra ≥ 70
Operating temperature -30° C tot +35° C
Lifespan 100.000 hours / L80 @ Ta=25° C, conform TM-21/LM-80

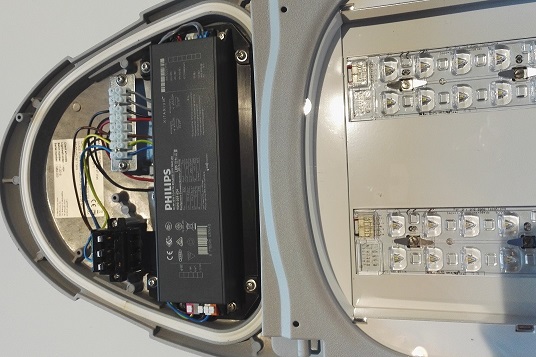

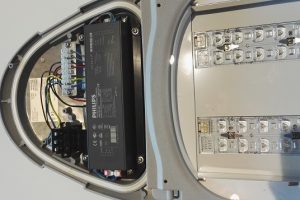

Driver Phillips Xitanium 40W programmable
Dimmer Programmable multistage 1-10V dimmer, DALI-interface
Voltage 110VAC / 230 VAC
Fixture material Aluminium
Glass Cover Extra Clear Hardened Glass Option Ant-glare
Impact Resustance IK 08/9
Protection IP66 tested in accordance with NEN-EN 60529
Housing color Ral 7040 or Custom
Material Housing Aluminium
Tilt Vertical: 0, 5, 10, 15 degrees, Horizontal: 0, -5,-10, -15 degrees
Mounting Pole diameter 60 / 76 mm
Optical Direct Lens System with side reflectors
Registration Global design registration
Quality control In – house system and DEKRA Final Random Inspection by DEKRA
CE/ CB/ LVD EN 60598-1, EN 60598-2-3, EN 60598-2-6, EN 62471
EMC EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
EMF EN 62493, WEEE 2003/108/EG, RoHS
Option Direct Current Technology
Weight 9,5 Kg
