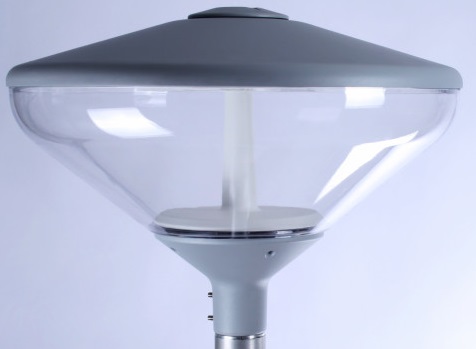

JoriMar Kramer Konisk dekorativ funktionellt direkt armatur

KONISK DEKORATIV FUNKTIONELLT ARMATUR MED DIREKT LJUS MED DIFFUS ELLER TRANSPARENT KUPA



Specifikations
Lightsource LED 20 x Luxeon rebel TX
Insulation class I/II
System Power 14-33W
Driver Power factor cos φ 0,970 @ full load (100%) Current 200 – 530 mA preprogrammed
Light output 1800 – 4000 lumen
Color Temperature 2200 K /3000 K / 4000 K
Color Rend. Index Ra ≥ 70
Operating temperature -30° C tot +35° C
Lifespan 100.000 hours / L80 @ Ta=25° C, conform TM-21/LM-80
Driver Phillips Xitanium 40W programmable
Dimmer Programmable multistage 1-10V dimmer, DALI-interface
Voltage 110VAC / 230 VAC
Fixture material Aluminium
Glass Cover weather resistant polycarbonate according NEN-EN 50102/ IEC 62262: 2002
Impact Resustance IK 10
Protection IP66 tested in accordance with NEN-EN 60529
Housing color Ral 7040 or Custom
Material Housing Aluminium
Light cover impact resistant polycarbonate clear
Mounting Pole diameter 60 mm
Optical Technique Direkt Lens System
Registration Global design registration
Quality control In – house system and DEKRA Final Random Inspection by DEKRA
CE/ CB/ LVD EN 60598-1, EN 60598-2-3, EN 60598-2-6, EN 62471
EMC EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
EMF EN 62493, WEEE 2003/108/EG, RoHS
Weight 9 Kg
